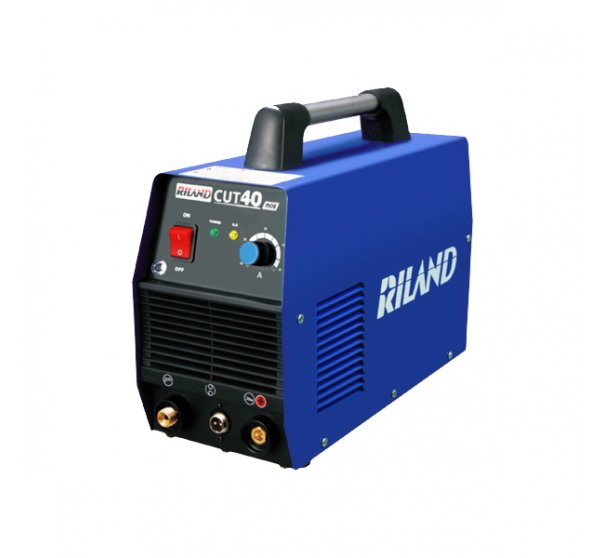

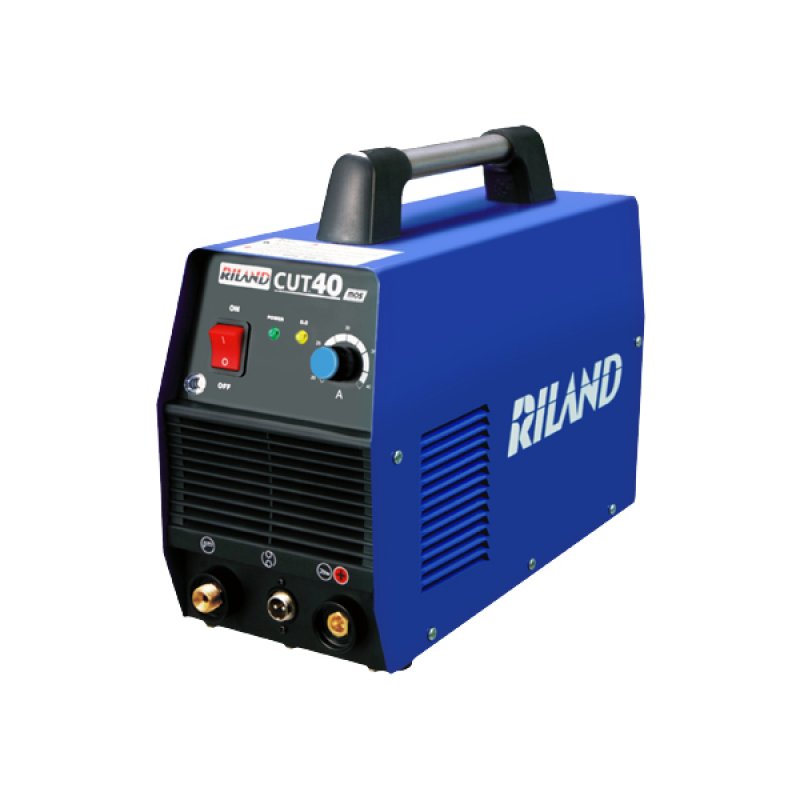

Riland CUT 40 Plasma Machine
-
$567.10
- Ex Tax: $530.00
Touch Start System – Smooth Arc-Striking with HF Control.
Rapid Arc Restrike – Quality narrow cutting and excellent travel speed.
Continuous adjustment of cutting current. Competitive Cutting Thickness(Carbon Steel) - Recommended thickness:10mm(External gas).
Automatic post-flow stop for rapid re-striking.
Cool Operation, Long Consumable Life –Cutting accessories with competitive price and performance.
Engine Drive Compatible – Wide range for input voltage,Select a suitable Engine Drive in remote locations.
Compact dimensions.
Auto-Protection against over-voltage, over-current and over-heated.
Energy Saving - Compared with the traditional cutting machine more efficient.
| Product Specifications | |
| Additional Description | "Rated Input Voltage(V)：AC220 ±15% 1P Efficiency(%)：80 Input Frequency (HZ)：50/60 Power Factor：0.73 Rated Input Power(KVA)：6.6 Protection Grade：IP21 Rated Input Current(A)：30 Arc-Initiating：H-F,Touch Open Circuit Voltage(V)：230 Air Pressure(MPa)：0.4-0.5 Current Range(A)：20-40 Recommend Cutting Thickness（mm）：≤16 Rated Output Voltage（V）：96 Weight(kg)：9 Duty cycle at maximum current：60%@25℃ " |
